Equipamentos

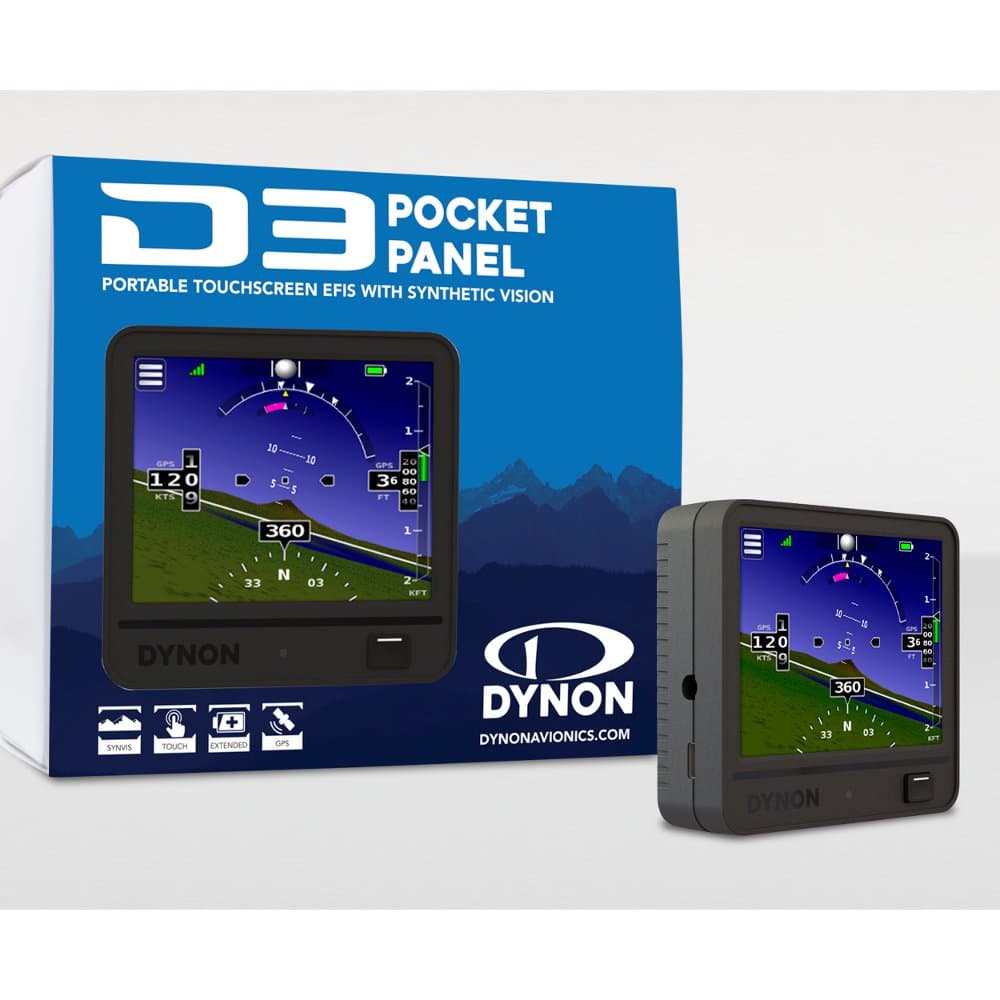

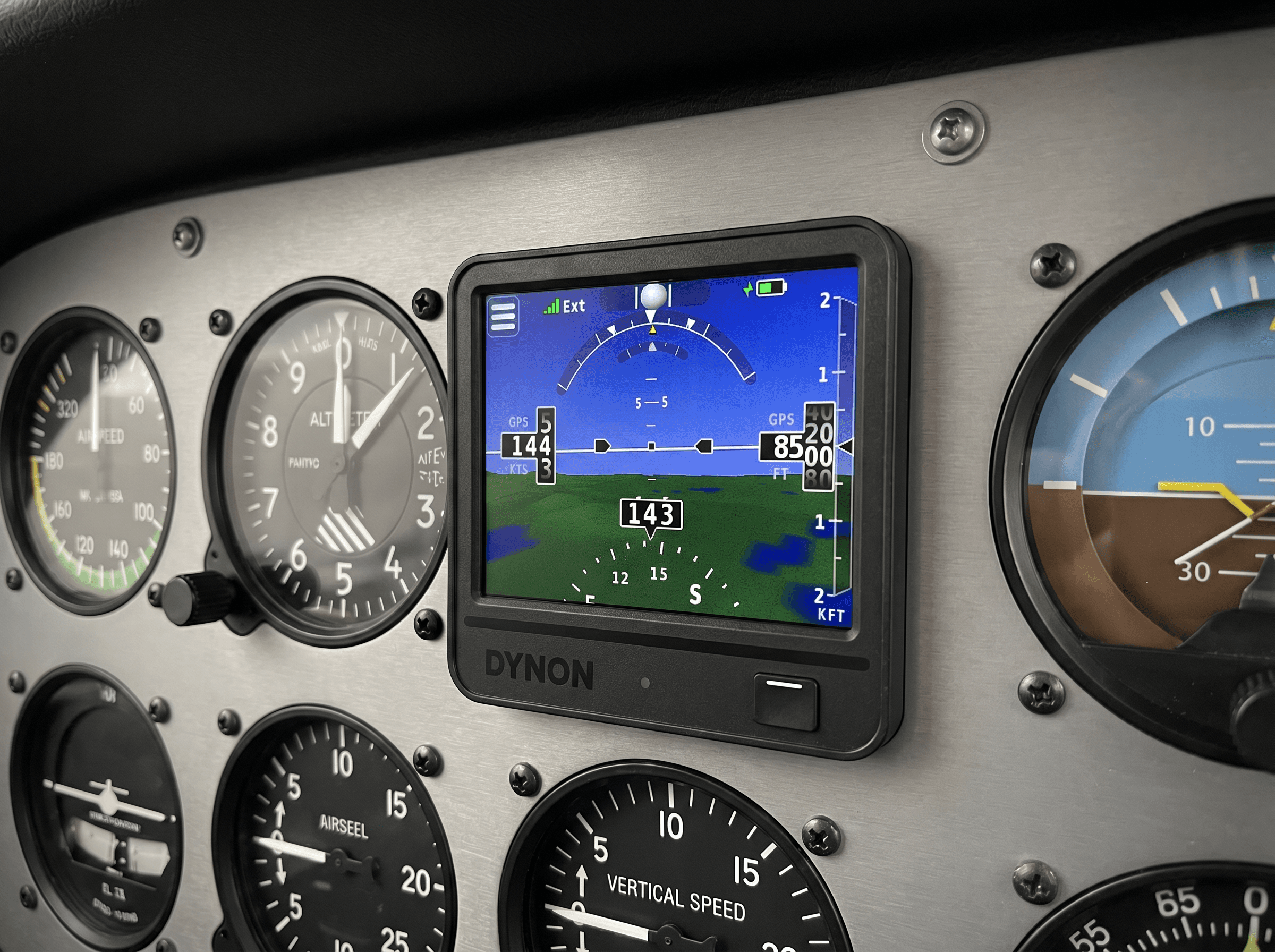

Dynon D3 Pocket Panel
Modelo
Backup é disciplina, não opção
Especificações Técnicas

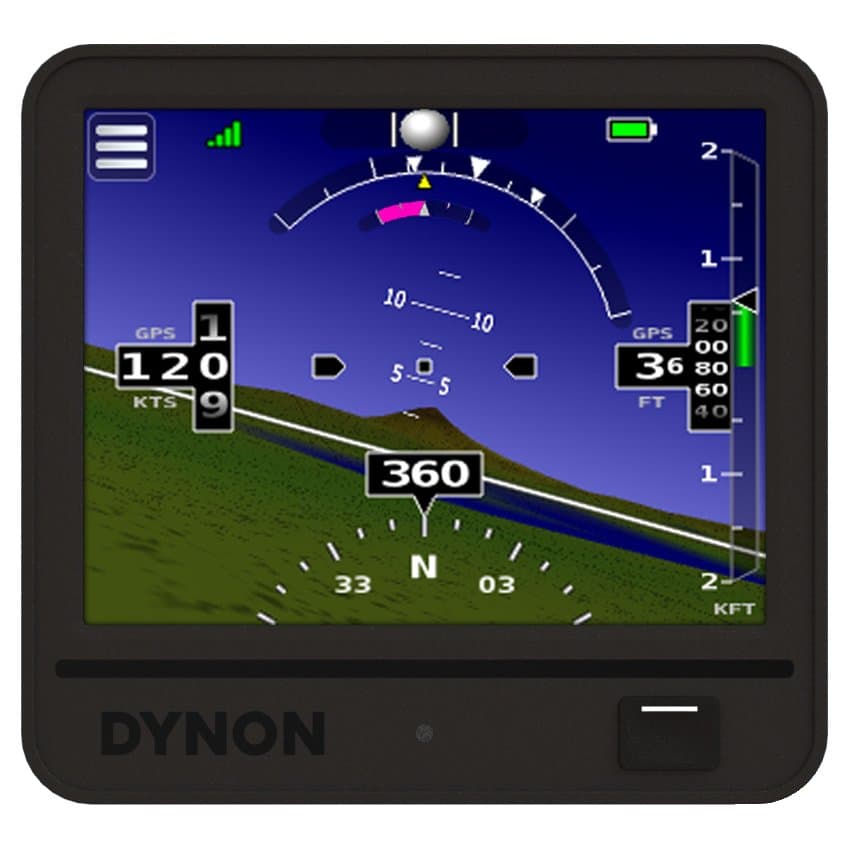

Display
TFT colorido 2,4" com backlight ajustável. Legível em plena luz solar direta.
ADAHRS Integrado
Giroscópio 3 eixos, acelerômetro e barômetro. Attitude funcional independente de pitot.
Bateria
Interna recarregável com até 3h de autonomia total. Carregamento via USB.

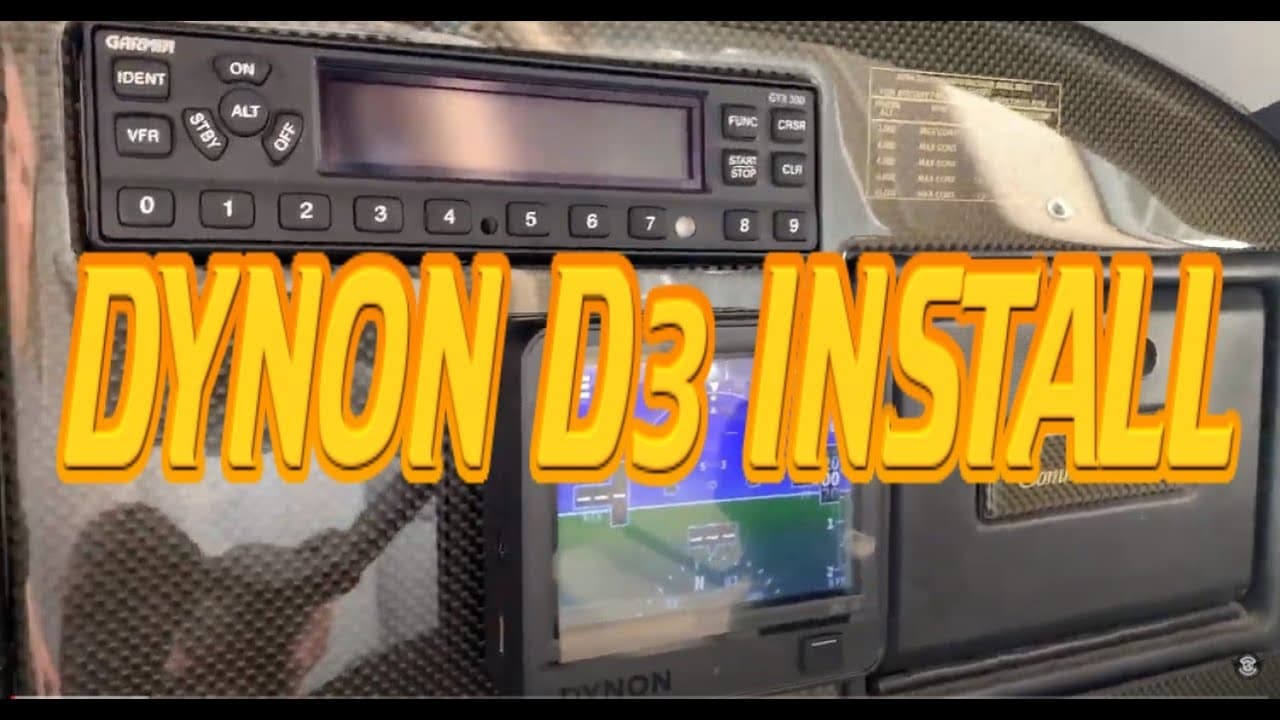

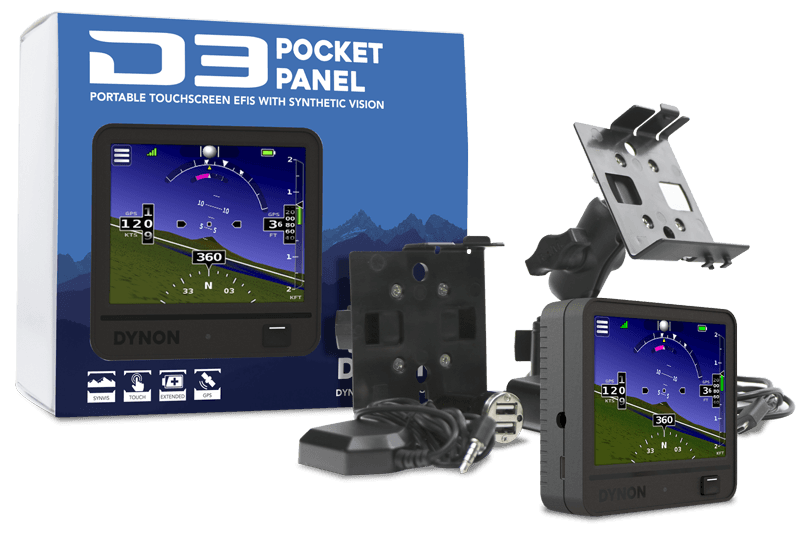

Instalação
Ventosa de cockpit ou bracket padrão 3 1/8". Sem ferramentas. Sem burocracia regulatória.
Portabilidade
170g. Transfere entre aeronaves em segundos. Ideal para quem opera múltiplas aeronaves.
Compatibilidade
Experimental, LSA e ultraleves. Referência complementar em certificados VFR e IFR.
Backup is not an option.
It is discipline.
The pilot who fits the D3 does not expect a failure.
He simply decides that when it comes
he will already be ready.
- Artificial horizon · airspeed · altimeter · VSI
- Attitude independent of pitot
- Internal 3 h battery · zero electrical dependence
- Tool free mounting in any cockpit
170 grams.
The weight of being ready.
It fits in the aircraft pocket.
It is worth the space that one right decision
takes up in the head of a pilot who flies with criteria.
Dynon Avionics · D3 Pocket Panel
Specifications
What is inside the D3
Display
TFT 2.4" color
Adjustable backlight · readable in sunlight
ADAHRS
3 axis gyro
Accelerometer + barometer integrated
Attitude
Independent
Works without a Pitot tube
Battery
3 h endurance
Internal rechargeable · USB
Weight
170 g
Suction mount or 3 1/8" bracket
Use
Experimental · LSA
VFR backup reference
FLAP Pantaneiro guarantee
Every FLAP product goes through strict quality verification. If it does not meet your expectations, we guarantee exchange or return. Our commitment is to your trust.
